JANSEN® RD-700proS Tracked Dump Truck – 800 kg Payload, High Dump, and Self-Loading Bucket

The JANSEN® RD-700proS combines three practical functions in one compact transport machine: a hydrostatic drive, a hydraulic high-dump system, and a hydraulic self-loading bucket. This allows suitable materials to be picked up, transported, and then hydraulically unloaded at an elevated position.

On level ground, the maximum payload is 800 kg. Power is provided by a Loncin G420FD 4-stroke gasoline engine with 15 PS. The hydrostatic drive system allows for stepless speed control and facilitates precise maneuvering during handling, loading, and unloading.

A distinctive feature is its compact overall width of only approx. 74 cm. This allows the RD-700proS, despite its high transport capacity, to be used even through comparatively narrow access roads and in confined work areas.

Key Advantages

• Maximum payload of 800 kg on level ground
• Hydraulic self-loading bucket
• Hydraulic high-dump
• Dumping height of up to approx. 142 cm
• Dumping angle of more than 90°
• Hydrostatic drive with continuously variable speed control
• Maximum travel speed approx. 4.4 km/h
• 15 PS Loncin G420FD 4-stroke gasoline engine
• Electric starter and additional recoil starter
• All-terrain crawler track
• Only approx. 74 cm overall width
• Reinforced bucket with 3 mm wall thickness
• Straight bucket shape for reliable unloading
• Foldable operator platform

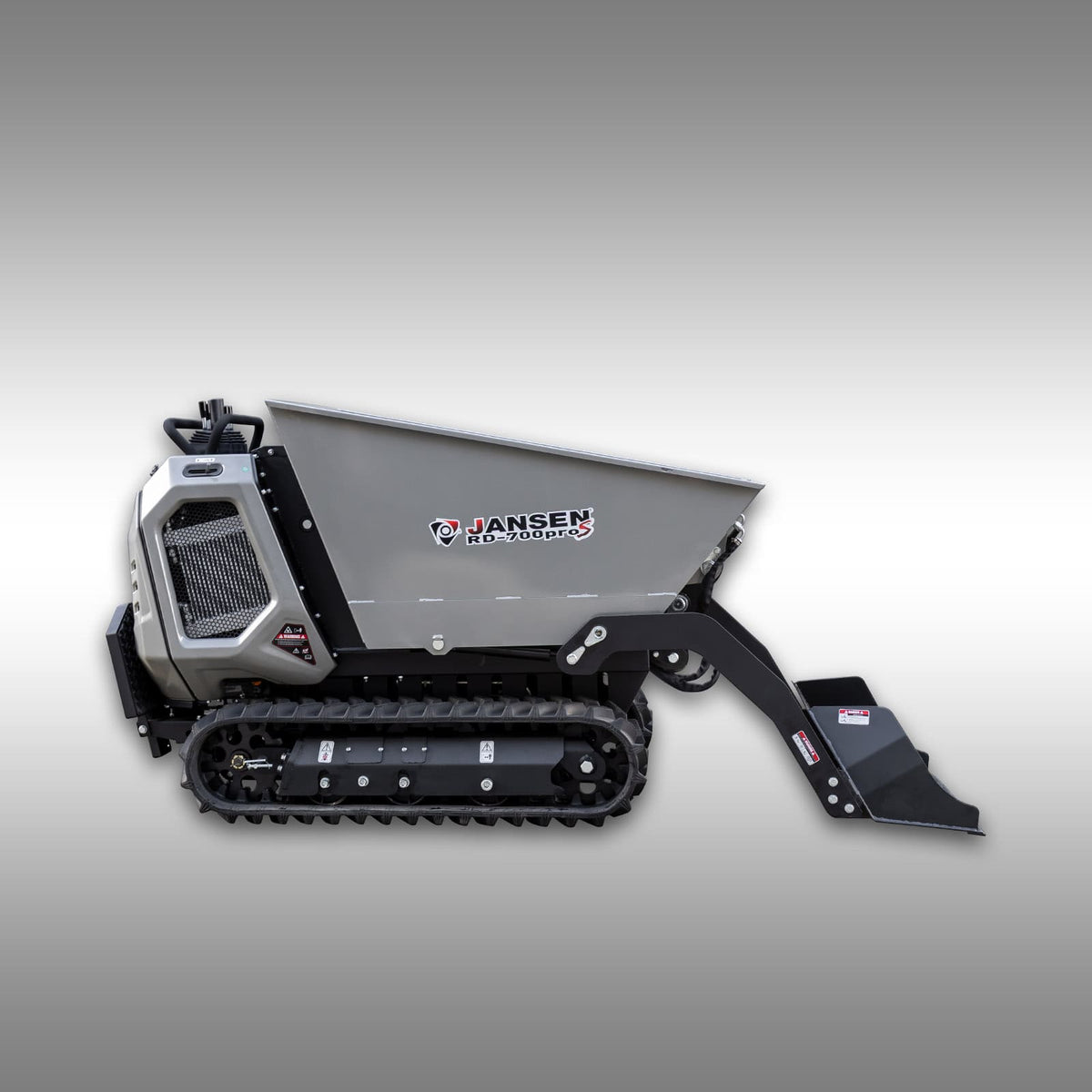

Hydraulic self-loading bucket

The JANSEN® RD-700proS features a hydraulically operated self-loading bucket. It can be used to pick up suitable loose materials and then load them directly into the transport bucket.

This allows many loading and transport tasks to be carried out without having to first load the material entirely by hand or with a separate machine.

The self-loading bucket is suitable, for example, for picking up:

• Soil
• Sand
• Gravel
• Small stones
• Suitable bulk materials
• Other suitable loose materials

The bucket measures approximately 35 x 66 x 20 cm. This allows for loading, transporting, and hydraulic high-discharge operations to be combined in a single machine.

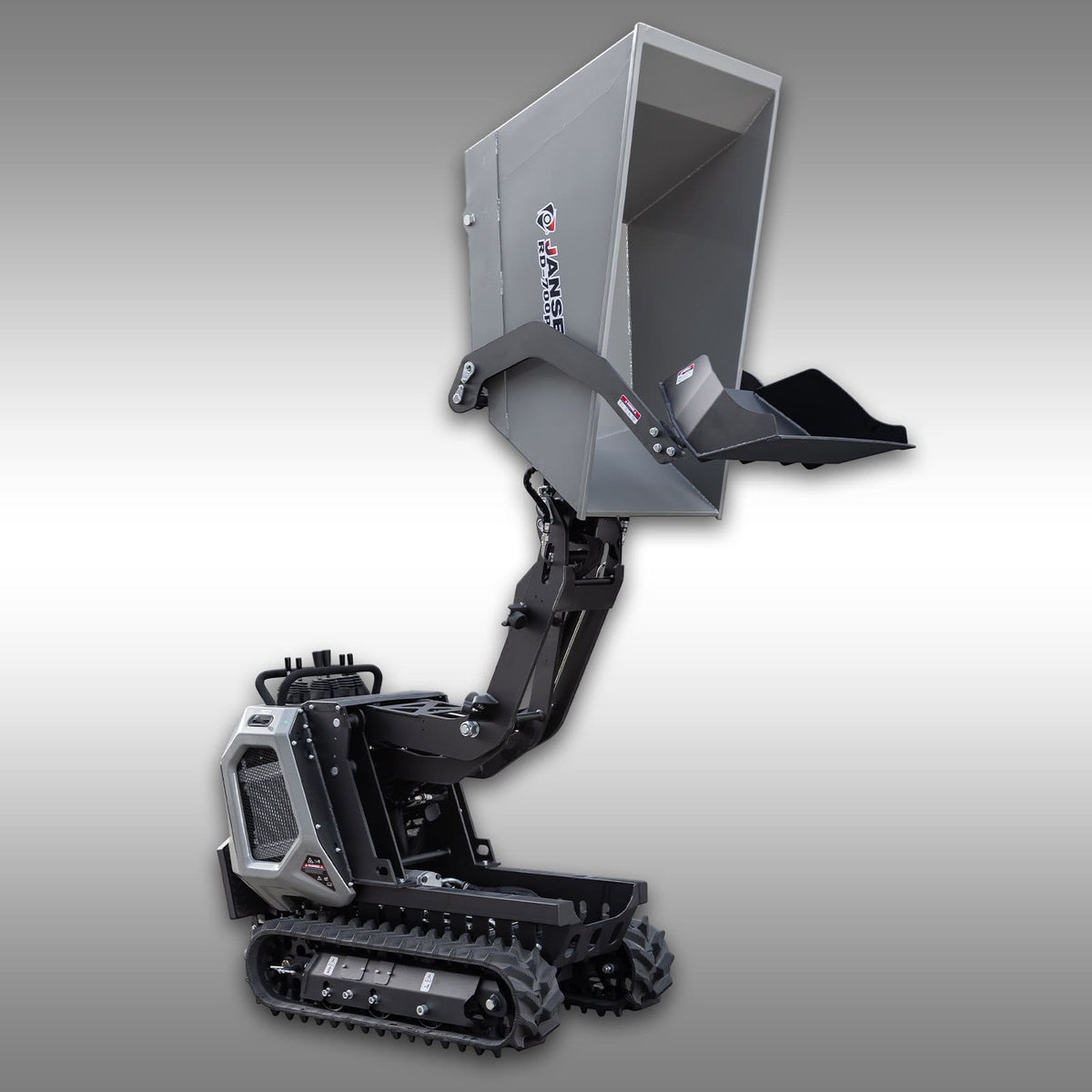

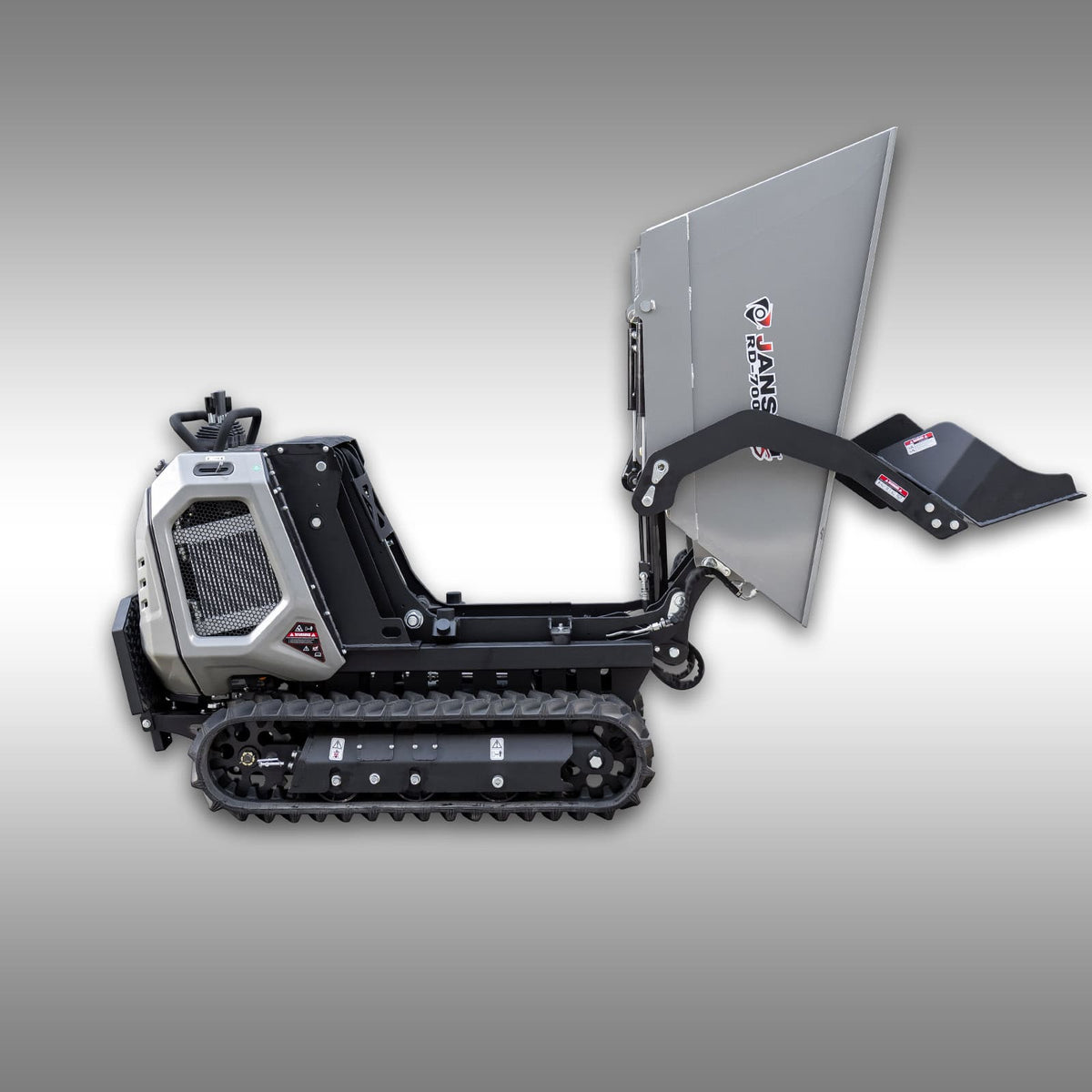

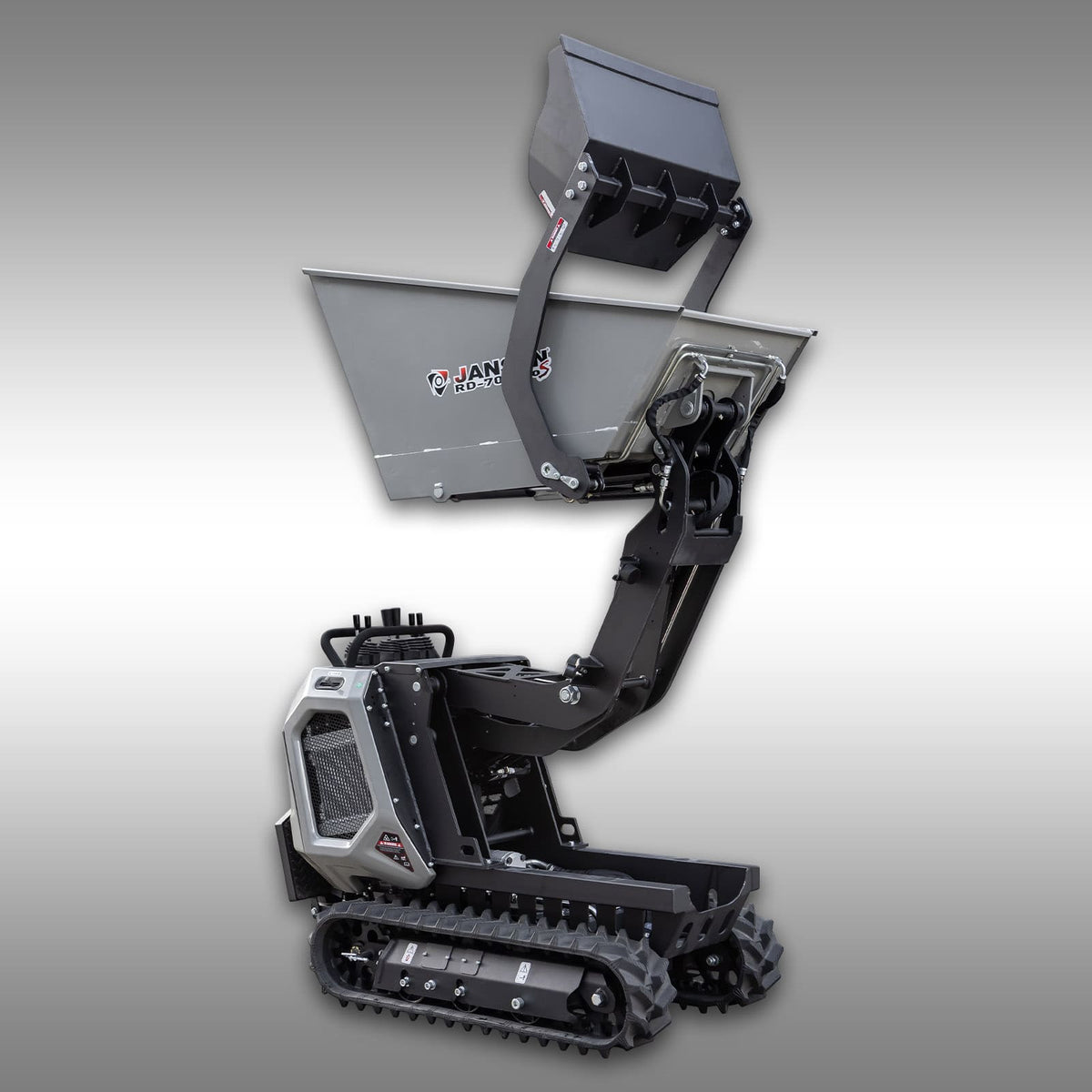

Hydraulic high-discharge with a tipping height of up to 142 cm

Another key feature is the hydraulic high-lift unloading. The bucket can not only be tilted but also hydraulically raised first.

This allows the RD-700proS to achieve a tipping height of up to approximately 142 cm. The transported material can thus be unloaded directly into suitable trailers, containers, or other target areas at a corresponding height.

The tipping angle of more than 90° ensures that the bucket is emptied as completely as possible, especially when handling suitable bulk materials such as soil or sand.

Hydrostatic Drive – Continuously Adjustable

The JANSEN® RD-700proS features a hydrostatic drive. This allows the travel speed to be continuously adjusted to the specific work situation.

The hydrostatic drive enables precise control, especially when maneuvering, picking up material, and during loading and unloading. Repeated gear changes, as required with a conventional manual transmission, are not necessary.

• Continuously variable speed control
• Precise control
• Good control even at low speeds
• Can start under load
• Suitable for frequent changes in direction and speed
• Maximum speed: approx. 4.4 km/h

Up to 800 kg payload

On level ground, the JANSEN® RD-700proS can carry a load of up to 800 kg. As the incline increases, the permissible payload decreases accordingly.

• Level ground: up to 800 kg
• On a slope of approx. 17%: up to 450 kg
• On a slope of approx. 30%: up to 375 kg

The load should always be adjusted to the respective terrain and slope conditions.

Only approx. 74 cm total width

Despite its self-loading bucket, high-dump feature, and a payload of up to 800 kg, the RD-700proS has a total width of only approx. 740 mm.

Its compact width allows it to be used in relatively narrow driveways, through gates, and in work areas. This is advantageous, for example, when working on private properties, in gardening and landscaping, or on construction sites with limited space.

All-Terrain Tracked Undercarriage

The tracked undercarriage provides a large contact area and enhances traction on various surfaces. This allows the RD-700proS to be used even on surfaces where wheeled transport machines quickly reach their limits.

Typical surfaces include, for example:

• Soft ground
• Mud
• Sand
• Uneven surfaces
• Construction sites
• Ascent and descent within the permissible operating limits

Robust body with 3 mm wall thickness

The RD-700proS’s transport body features a robust design with a wall thickness of approx. 3 mm.

Additionally, the bed is designed to be as straight as possible. This facilitates the dumping of transported material and reduces areas where bulk material can become lodged during unloading.

The loading bed measures approximately 1,310 x 660 mm.

15 PS Loncin G420FD Gasoline Engine

A Loncin G420FD 4-stroke gasoline engine with 15 PS provides power for the drive train and the hydraulic system.

The engine can be conveniently started using the electric starter. A traditional recoil starter is also available. The fuel tank holds approximately 6.6 liters of regular gasoline.

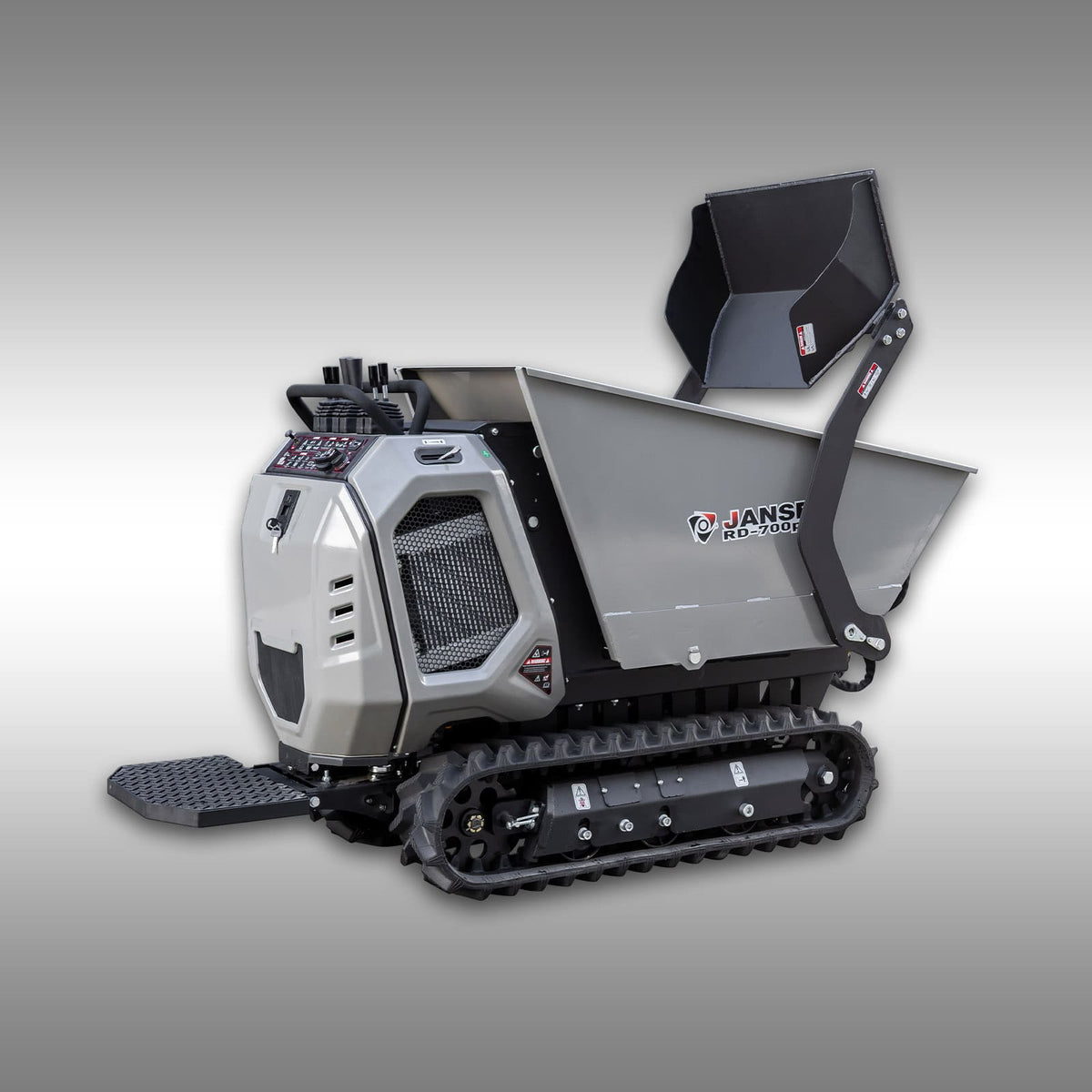

Foldable Operator Platform

The RD-700proS features a sturdy operator platform with a foldable footboard. For longer transport distances, the operator can ride along on the platform.

If space is limited, the footboard can be folded away.

Typical Applications

Thanks to the combination of a self-loading bucket, high-dump capability, hydrostatic drive, and tracked undercarriage, the RD-700proS is designed for a variety of transport and loading tasks.

• Construction sites
• Gardening and landscaping
• Property maintenance
• Agriculture
• Forestry
• Farm work
• Transportation work in hard-to-reach areas

Technical Specifications

• Model: JANSEN® RD-700proS
• Machine Type: Tracked dumper with high-dump and self-loading bucket
• Max. payload on level ground: 800 kg
• Payload on a slope of approx. 17%: max. 450 kg
• Payload on a slope of approx. 30%: max. 375 kg
• Drive system: hydrostatic
• Bucket drive: hydraulic
• High-dump: hydraulic
• Self-loading bucket: hydraulic
• Dump height: up to approx. 142 cm
• Tipping angle: more than 90°
• Engine: Loncin G420FD, 4-stroke gasoline engine
• Engine power: 15 PS
• Starter: Electric and recoil starter
• Fuel: Regular gasoline
• Fuel tank capacity: approx. 6.6 liters
• Max. speed: approx. 4.4 km/h
• Dry curb weight: approx. 575 kg
• Ground clearance: approx. 100 mm
• Dimensions when assembled: approx. 2,650 x 740 x 1,130 mm (L x W x H)
• Overall width: approx. 740 mm
• Dimensions of loading bed: approx. 1,310 x 660 mm
• Bed wall thickness: approx. 3 mm
• Self-loading shovel dimensions: approx. 35 x 66 x 20 cm
• Front edge height of bed: approx. 890 mm
• Operator platform: included, fold-down footboard
• Packaging dimensions: approx. 1,830 x 770 x 1,300 mm (L x W x H)
• Weight including packaging: approx. 630 kg

Delivery & Commissioning

The JANSEN® RD-700proS is well-packed in a sturdy wooden crate when delivered. You should allow approximately 3 hours for commissioning. Due to the machine’s weight, we recommend performing the work with a second person.

IMPORTANT: The hydraulic oil level must be checked before initial commissioning and, if necessary, topped off with HLP-46 hydraulic oil. The hydraulic system requires approximately 18 liters of HLP-46. Likewise, the engine oil level must be checked before initial operation and topped off with 10W40 or 15W40 engine oil if necessary.

A German operating manual and exploded view drawings are included in the scope of delivery. If you have any questions regarding startup or operation, we will of course be happy to assist you personally by phone.

Scope of Delivery

• JANSEN® RD-700proS Tracked Dumper
• Hydraulic Self-Loading Bucket
• Hydraulic High-Dump System
• German Operating Manual
• Exploded View Diagrams

Service, Replacement Parts & Showroom

Even after your purchase, we’re here to personally assist you with any technical questions or issues. For our JANSEN® machines, we offer a comprehensive supply of replacement parts and expert support.

If you have any questions or issues, knowledgeable representatives are available to assist you personally—no anonymous call centers.

Many of our machines can be viewed at our showroom by prior appointment.

Frequently Asked Questions (FAQ)

What is the maximum payload of the JANSEN® RD-700proS?

Answer: On level ground, the maximum payload is 800 kg. On a slope of approximately 17%, the maximum payload is up to 450 kg, and on a slope of approximately 30%, it is up to 375 kg.

How does the self-loading bucket work?

Answer: The hydraulically operated self-loading bucket picks up suitable loose material such as soil, sand, or gravel and then loads it directly into the dump body of the crawler dumper.

How high can the RD-700proS unload the material?

Answer: Thanks to the hydraulic high-dump system, the dump bed reaches a tipping height of up to approximately 142 cm. The tipping angle is more than 90°.

What are the advantages of the hydrostatic drive system?

Answer: The hydrostatic drive system enables precise and stepless regulation of travel speed. This is particularly advantageous during maneuvering as well as when loading and unloading material.

What is required to commission the RD-700proS?

Answer: Allow approximately 3 hours for commissioning. You will need approximately 1 liter of 10W40 or 15W40 engine oil, regular gasoline, and approximately 18 liters of HLP-46 hydraulic oil. Due to the machine’s weight, we recommend having a second person assist with commissioning.
