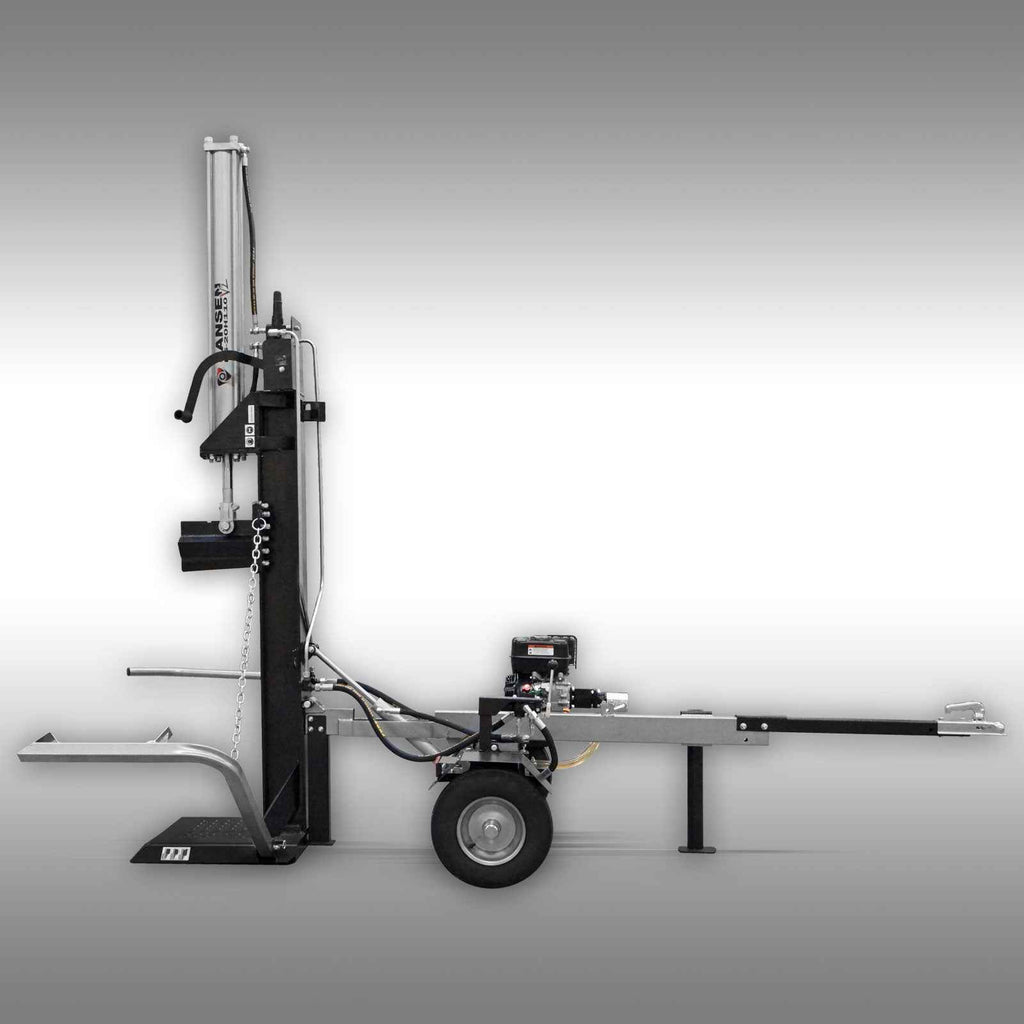

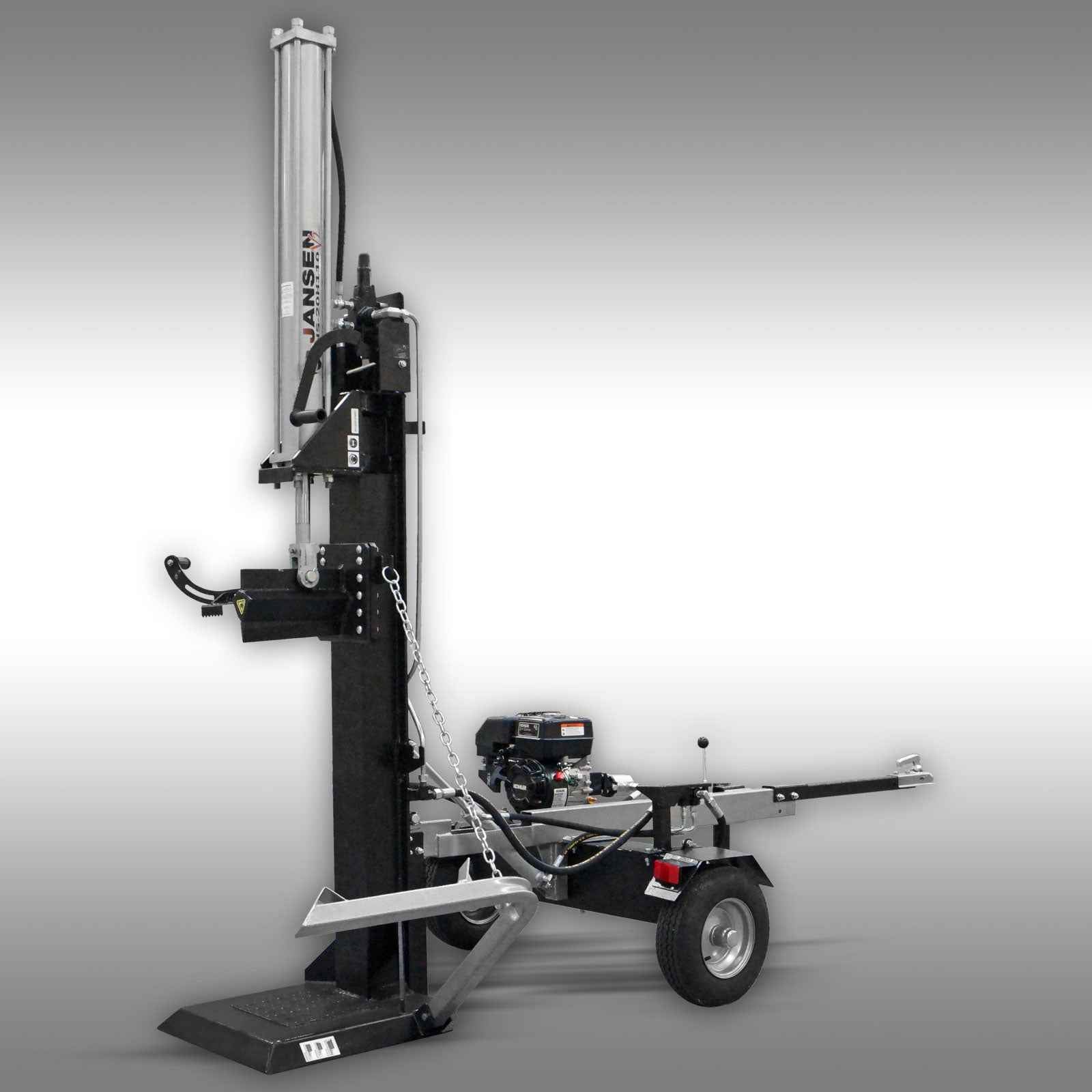

JANSEN® HS-20H110-V2 Log Splitter – 20 metric tons of splitting force, 110 cm & KOHLER engine
The JANSEN® HS-20H110-V2 is a powerful, floor-standing log splitter with 20 metric tons of measured splitting force and a maximum splitting length of 110 cm. The machine is powered by a robust KOHLER 4-stroke OHV gasoline engine with 6.5 PS.
The splitting force on our log splitters is measured directly at the splitting wedge. The HS-20H110-V2 also features a 30 cm-long splitting wedge and a standard log lifter, which is particularly helpful when processing large and heavy logs.
Thanks to its gasoline engine, the log splitter can be used without needing a power connection. The hydraulic system allows the splitting wedge to be stopped in various positions during operation and then moved either forward or backward as desired.
Key Benefits
- Measured splitting force of 20 metric tons
- Maximum splitting length of 110 cm
- KOHLER 4-stroke OHV gasoline engine with 6.5 PS / 4.8 kW
- Log lifter included as standard
- 30 cm long splitting wedge
- Splitting wedge can be stopped in various positions
- Forward and reverse movement of the splitting wedge possible from the respective position
- Off-grid operation via gasoline engine
- Drawbar and hitch for maneuvering and transporting
- Overall width of approx. 118 cm
- Manufactured in accordance with EN 609:2017
20 metric tons of splitting force – measured directly at the splitting wedge
The JANSEN® HS-20H110-V2 achieves a splitting force of 20 metric tons. The splitting force is measured directly at the splitting wedge and thus indicates the actual force applied there.
With a maximum splitting length of 110 cm, the log splitter is also designed for logs of corresponding length. The cylinder requires approximately 18 seconds to complete a full downward stroke. The full upward return also takes approximately 18 seconds.

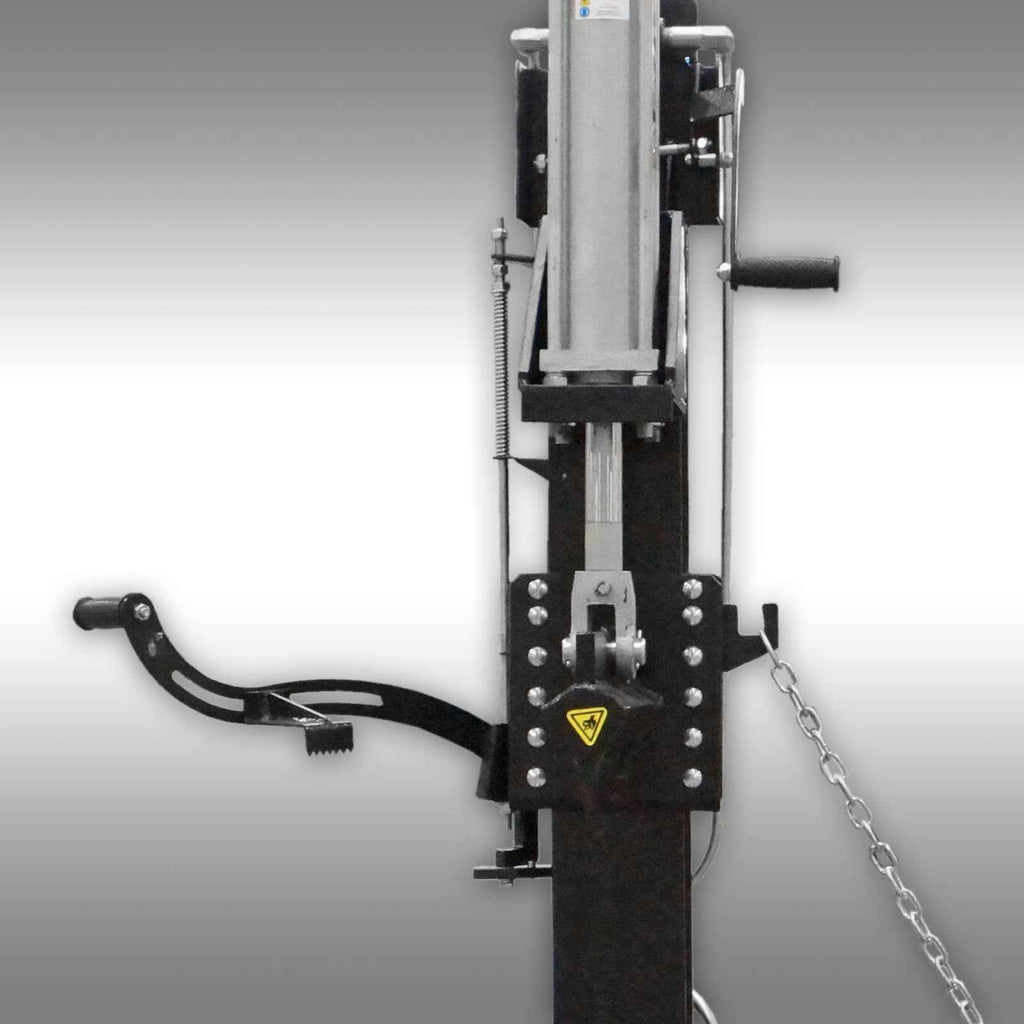

30 cm long splitting wedge
The HS-20H110-V2 is equipped with a 30 cm long splitting wedge. Thanks to the long wedge, even thicker logs can be opened wide without having to be rotated immediately after a short splitting stroke.
The hydraulic system is designed so that the splitting wedge can be stopped in various positions. From there, it can then be moved either forward or backward as desired. A complete return to the upper starting position is therefore not required after every single splitting operation.

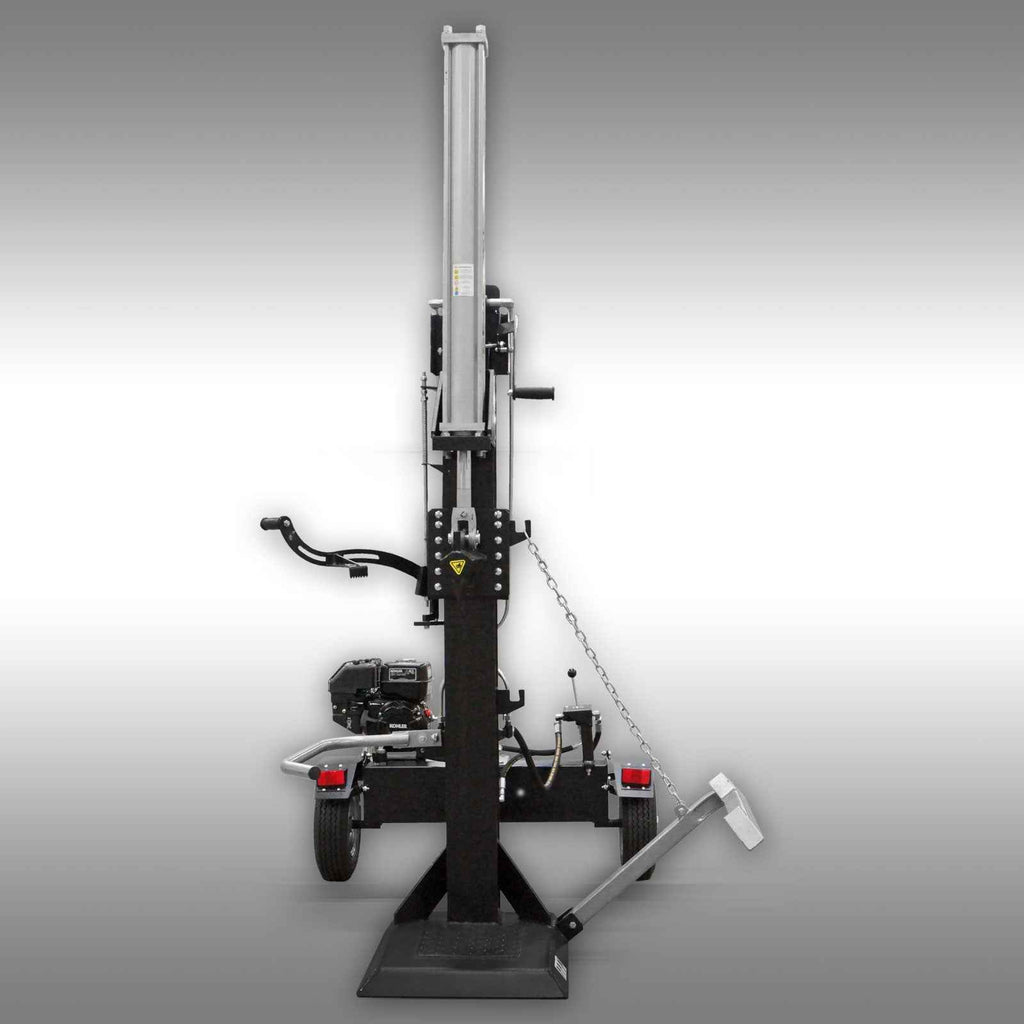

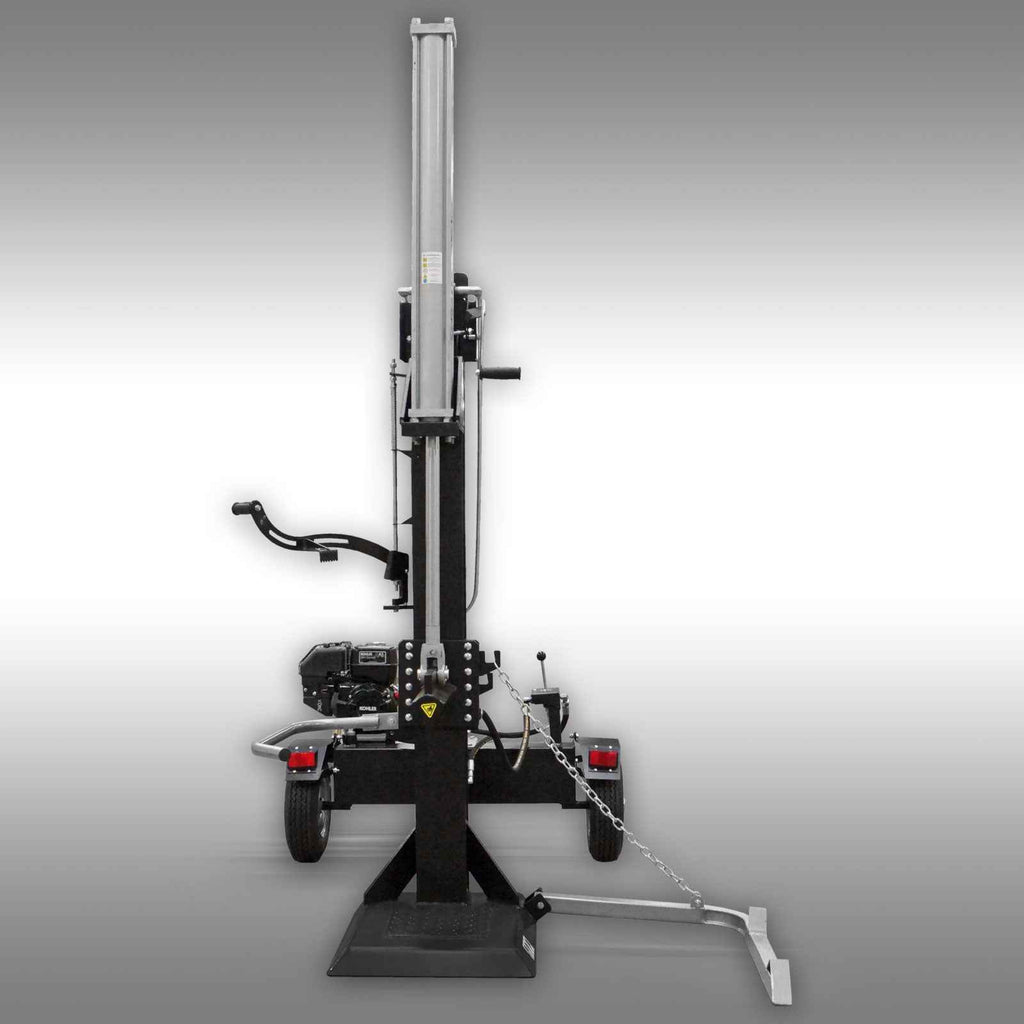

Log Lifter for Large Logs
The standard log lifter assists in processing large and heavy logs. With the machine’s assistance, the log can be lifted and positioned for the subsequent splitting operation.
6.5 PS KOHLER Gasoline Engine
The JANSEN® HS-20H110-V2 comes equipped with a KOHLER 4-stroke OHV gasoline engine. The engine delivers 6.5 PS or 4.8 kW and is started via a recoil starter.
The fuel tank capacity is approximately 3.6 liters. The specified fuel consumption is approximately 1.0–1.2 liters per hour.

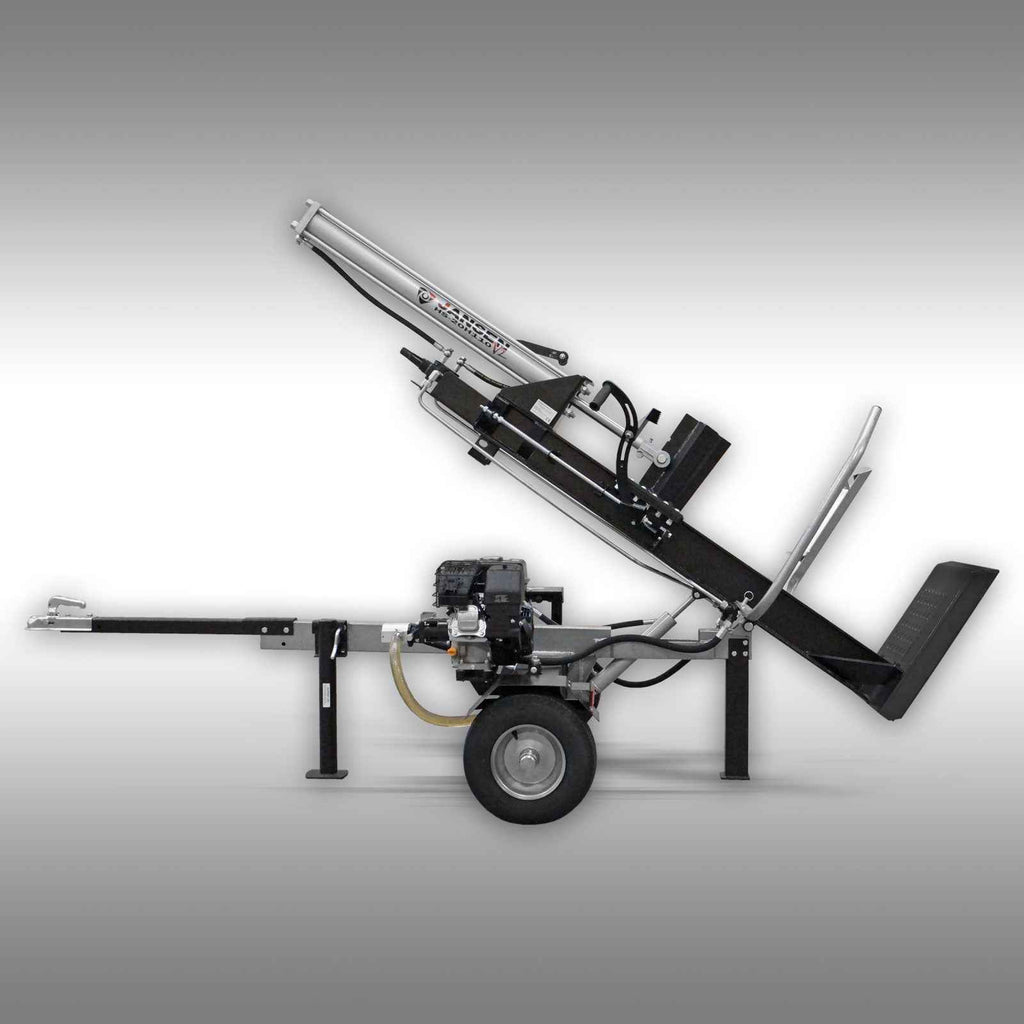

Transport & Maneuvering
The HS-20H110-V2 is equipped with a drawbar and hitch, allowing it to be moved and maneuvered at the worksite. The maximum towing speed is 25 km/h.
With a total width of approx. 118 cm, the log splitter can also be transported on a suitable trailer.
Please note: The log splitter is not approved for road use and therefore must not be towed by a vehicle on public roads in Germany. For transport on public roads, the unit must be loaded onto a suitable trailer, for example.
Safety & EN 609:2017
The JANSEN® HS-20H110-V2 is manufactured and produced in accordance with the EU product safety standard EN 609:2017.
Important: A splitting cross is included in the scope of delivery. However, within the European Union, this must not be used when operating the log splitter, as EN 609:2017 does not permit the use of multiple splitting wedges or splitting crosses with log splitters.
Technical Specifications
- Model: JANSEN® HS-20H110-V2
- Type: upright log splitter
- Splitting force: 20 metric tons (measured value)
- Max. splitting length: 110 cm
- Engine: KOHLER 4-stroke OHV gasoline engine
- Engine power: 6.5 PS / 4.8 kW
- Fuel: Regular gasoline
- Fuel tank capacity: approx. 3.6 liters
- Fuel consumption: approx. 1.0–1.2 L/hr
- Starting system: Recoil starter
- Cylinder stroke down: approx. 18 seconds
- Cylinder stroke up: approx. 18 seconds
- Cylinder diameter: 115 mm
- Piston rod: 45 mm
- Splitting wedge length: 30 cm
- Log lifter: included
- Max. towing speed: 25 km/h
- Weight without fluids: approx. 320 kg
- Dimensions (upright): approx. 218 x 118 x 310 cm (L x W x H)

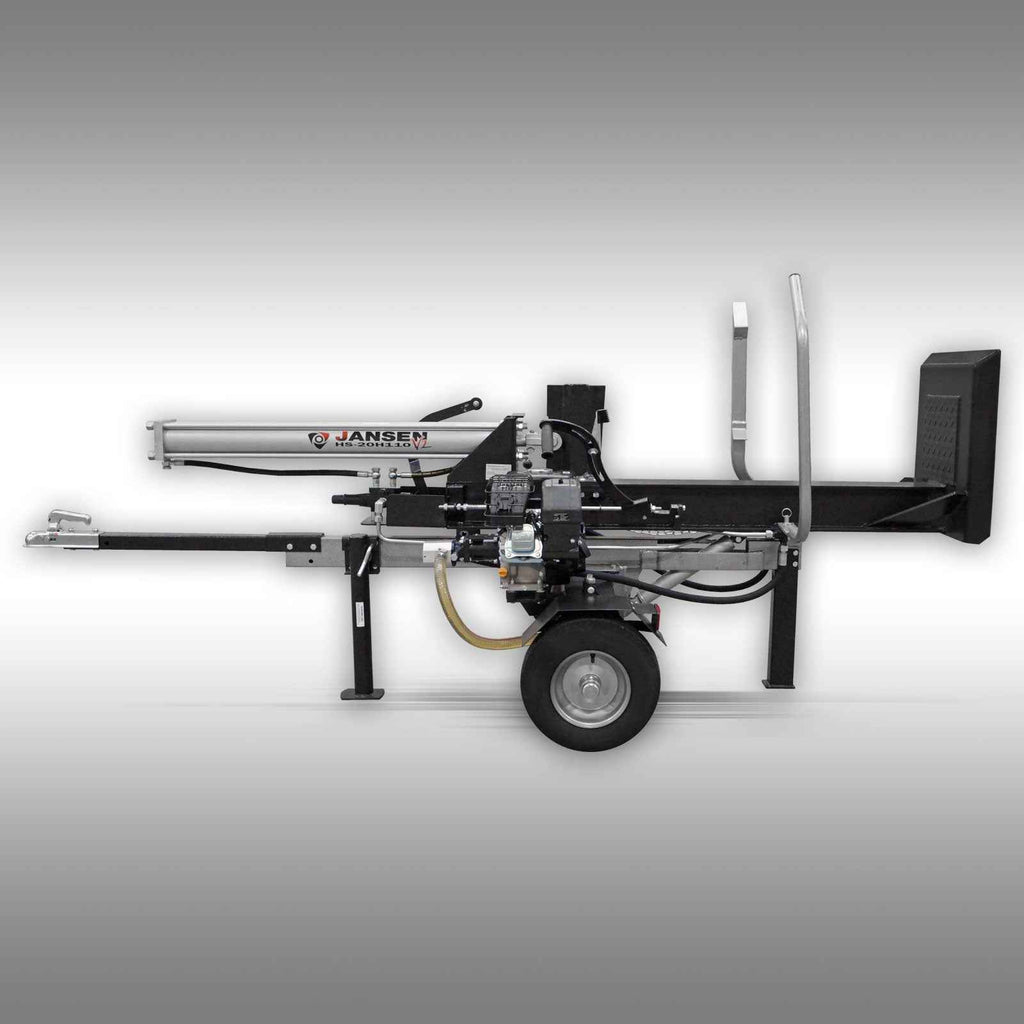

- Dimensions (laid flat): approx. 310 x 118 x 128 cm (L x W x H)
- Engine oil capacity: approx. 1 liter
- Recommended engine oil: 10W40 or 15W40
- Hydraulic oil capacity: approx. 20 liters
- Recommended hydraulic oil: HLP46
- Packaging dimensions: approx. 223 x 70 x 82 cm (L x W x H)
- Weight including packaging: approx. 386 kg
Delivery & Commissioning
The JANSEN® HS-20H110-V2 is delivered well-protected and partially disassembled in a wooden crate. Allow approximately 3–4 hours for final assembly. A German operating manual is included with the delivery.
Approx. 20 liters of hydraulic oil are required for the initial fill. Hydraulic oil of the HLP46 classification is recommended. Additionally, approx. 1 liter of engine oil is required for the KOHLER gasoline engine. A multigrade oil of the 10W40 or 15W40 classification is recommended.
Service & Replacement Parts
We provide you with a direct point of contact even after your purchase. With our in-house master workshop and an extensive supply of replacement parts, we can assist you with maintenance, repairs, and replacement part inquiries. We have many replacement parts in stock.
Frequently Asked Questions (FAQ)
What is the splitting force of the JANSEN® HS-20H110-V2?
Answer: The log splitter achieves a measured splitting force of 20 metric tons. The measurement is taken directly at the splitting wedge.
What is the maximum log length that can be processed?
Answer: The HS-20H110-V2 is designed for logs up to 110 cm in length.
Does it come with a log lifter?
Answer: Yes. The log splitter comes standard with a log lifter, which is particularly helpful when handling large and heavy logs.
What type of engine is installed?
Answer: The HS-20H110-V2 comes equipped with a KOHLER 4-stroke OHV gasoline engine with 6.5 PS or 4.8 kW.
How long is the splitting wedge?
Answer: The built-in splitting wedge is 30 cm long.
Does the splitting wedge have to retract completely after each splitting operation?
Answer: No. The splitting wedge can be stopped in various positions during operation and then moved either forward or backward as desired.
Does the splitting wedge automatically return to its starting position?
Answer: No. The current models do not have the automatic return function, which can still be seen in the product video for the older model.
Is the log splitter street-legal?
Answer: No. The HS-20H110-V2 is not approved for road use and may not be towed behind a towing vehicle on public roads in Germany.
Can the included splitting cross be used?
Answer: Within the European Union, the included splitting cross must not be used when operating the log splitter. This is based on EN 609:2017 regarding multiple splitting wedges and splitting crosses.
What type of hydraulic oil is required?
Answer: Approximately 20 liters of hydraulic oil are required for the initial fill. Hydraulic oil of the HLP46 classification is recommended.
What type of motor oil is required?
Answer: The engine requires approximately 1 liter of engine oil. A multigrade oil with a classification of 10W40 or 15W40 is recommended.
How long does final assembly take?
Answer: You should plan on approximately 3–4 hours for final assembly.
