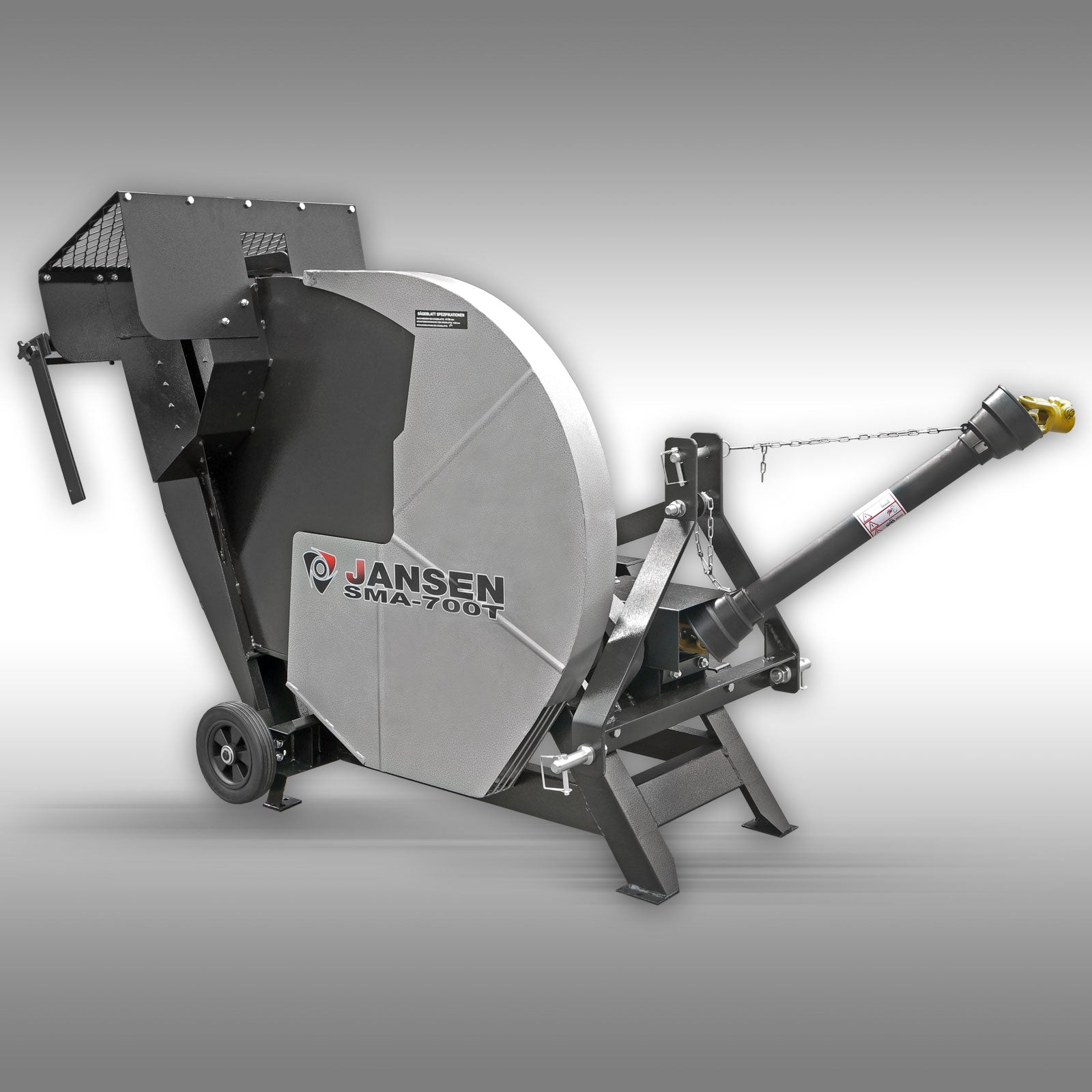

JANSEN® SMA-700T Tractor-Mounted Tilting Saw – 700 mm carbide-tipped saw blade, PTO drive & three-point hitch
The JANSEN® SMA-700T is a powerful tractor-mounted rocker saw for fast and efficient firewood processing. Equipped with a large 700 mm carbide-tipped circular saw blade, a robust belt drive, and a three-point hitch compatible with Category I and above, this firewood saw is optimally designed for use with suitable tractors and farm tractors.
Power is supplied directly via the tractor’s 540 rpm PTO shaft. A tractor output of at least 15 PS is sufficient. The required PTO shaft is included in the scope of delivery.
Thanks to its solid construction, practical rocker arm with an extendable wood support, and sturdy length stop, the SMA-700T is a well-designed solution for anyone who wants to regularly process firewood with the help of their tractor.
Quick Overview – Key Benefits
- Powerful JANSEN® SMA-700T Tractor Rocker Saw
- Driven by the tractor PTO
- PTO speed: max. 540 rpm
- For tractors with 15 PS or more
- Three-point hitch, Category I or higher
- PTO shaft included
- Large 700 mm circular saw blade
- Carbide-tipped saw blade
- Direct belt drive for efficient power transmission
- For wood with a diameter of 25 to a maximum of 270 mm
- Extendable wood support
- Approx. 20 cm extension included
- Solid rip fence for cut lengths up to 56 cm
- Grip pliers for secure guidance and locking of the workpiece
- Robust and durable hammered finish
PTO drive for tractors with 15 PS or more
The JANSEN® SMA-700T does not require its own internal combustion or electric motor. It is driven by the PTO shaft of your tractor or farm tractor.
A minimum tractor power of 15 PS is required. The maximum PTO speed is 540 rpm.
This makes the SMA-700T particularly suitable for users who already own a suitable tractor and want to efficiently utilize its existing power for firewood processing.
The appropriate PTO shaft is included in the scope of delivery.
700 mm carbide-tipped saw blade for powerful cuts
The heart of the JANSEN® SMA-700T is the large 700 mm circular saw blade. The blade is carbide-tipped and is driven by a virtually loss-free belt drive.
The maximum speed of the saw blade is 1,440 rpm. Combined with the PTO drive, this provides a powerful combination for fast firewood processing.
The machine can process pieces of wood with a diameter of at least 25 mm up to a maximum of 270 mm.
Extendable rocker for longer pieces of wood
For convenient wood support, the rocker can be extended on the left side. This provides a larger support surface for the wood being processed when needed.
A corresponding extension of approximately 20 cm is included in the scope of delivery.
This allows even longer pieces of wood to be placed comfortably and fed to the saw blade in a controlled manner.
Solid length stop for uniform firewood
On the right side of the sawing bench is a sturdy length stop made of solid flat iron profile.
This allows the wood to be repeatedly cut to a consistent length. The stop can be used for cut lengths of up to a maximum of 56 cm.
Especially when processing larger quantities of firewood, a defined length stop simplifies the workflow and ensures that the logs are cut to a uniform length.
Safe Guidance of the Workpiece
For safe operation, the JANSEN® SMA-700T features a grip clamp. This allows the material being cut to be secured and guided precisely toward the saw blade.
The tilting saw is designed for processing firewood with logs between 25 and a maximum of 270 mm in diameter.
Three-point hitch, Category I or higher
The JANSEN® SMA-700T is equipped with a three-point hitch, Category I or higher, allowing it to be connected directly to a suitable tractor.
The combination of a three-point hitch and PTO drive makes the machine particularly appealing to agricultural and forestry users who want to operate their firewood processing equipment directly with their existing tractor.
Robust Construction for Firewood Processing
With a machine weight of approx. 136 kg, the SMA-700T features a stable and robust design. The durable hammered finish is resistant to the typical stresses and strains encountered when working in the lumberyard, on the farm, and in the forest.
The design is optimized for a simple and functional workflow: attach to the tractor, connect the PTO shaft, load the wood, and cut it to the desired length.
Technical Specifications
- Model: JANSEN® SMA-700T
- Equipment Type: Tractor-mounted swing saw / firewood saw
- Drive: PTO drive
- PTO shaft: Included
- Mounting: Three-point hitch, Cat. I or higher
- Tractor power: min. 15 PS
- PTO speed: max. 540 rpm
- Saw blade drive: Belt drive
- Number of V-belts: 2 pcs.
- Saw blade speed: max. 1,440 rpm
- Saw blade diameter: 700 mm
- Saw blade: carbide-tipped
- Saw blade shank: 30 mm
- Tooth pitch: 32 mm
- Saw blade thickness: 3.2 mm
- Minimum wood diameter: 25 mm
- Maximum wood diameter: 270 mm
- Length stop: up to 56 cm
- Weight: approx. 136 kg
- Dimensions: approx. 110 x 80 x 123 cm (L x W x H)
- Weight with packaging: approx. 161 kg
What’s Included
- JANSEN® SMA-700T Tractor Rocking Saw
- 700 mm carbide-tipped circular saw blade
- PTO shaft
- Approx. 20 cm extension for the wood support
Delivery & Assembly
The JANSEN® SMA-700T is delivered well-protected in a sturdy wooden crate.
Allow approximately 30 minutes for the initial assembly. The setup is straightforward and can be completed with a basic understanding of technical matters.
If you have any questions during assembly or commissioning, we are happy to assist you personally.
Service & Spare Parts Supply
For our JANSEN® machines, we offer not only expert advice but also our own master workshop and a reliable supply of replacement parts.
FAQ – Frequently Asked Questions About the JANSEN® SMA-700T
What tractor power is required for the SMA-700T?
Answer: The tractor used should have an engine power of at least 15 PS.
What PTO speed is required?
Answer: The maximum PTO speed is 540 rpm.
Is the PTO shaft included in the scope of delivery?
Answer: Yes. The required PTO shaft is already included with the JANSEN® SMA-700T.
How large is the saw blade?
Answer: The SMA-700T features a 700 mm carbide-tipped circular saw blade.
What is the maximum log diameter the tilting saw can handle?
Answer: The diameter of the log to be cut must be at least 25 mm and no more than 270 mm.
How long can firewood be cut with the stop?
Answer: The solid length stop can be used for cut lengths of up to a maximum of 56 cm.
What type of three-point hitch does the SMA-700T have?
Answer: The tilting saw is designed for a three-point hitch starting at Category I.
Does the SMA-700T have its own motor?
Answer: No. The SMA-700T does not require a separate motor. The saw blade is driven by the PTO shaft of a suitable tractor.
Conclusion – powerful tractor-mounted swing saw with a 700 mm saw blade
The JANSEN® SMA-700T is a robust and powerful solution for users who want to process their firewood directly using an existing tractor.
The 700-mm carbide-tipped saw blade, the efficient belt drive, the Category I three-point hitch, and the PTO drive at 540 rpm ensure a smooth and powerful workflow.
With an extendable wood support, a solid length stop, and the PTO shaft included in the scope of delivery, the JANSEN® SMA-700T offers a well-designed set of features for regular firewood processing.
